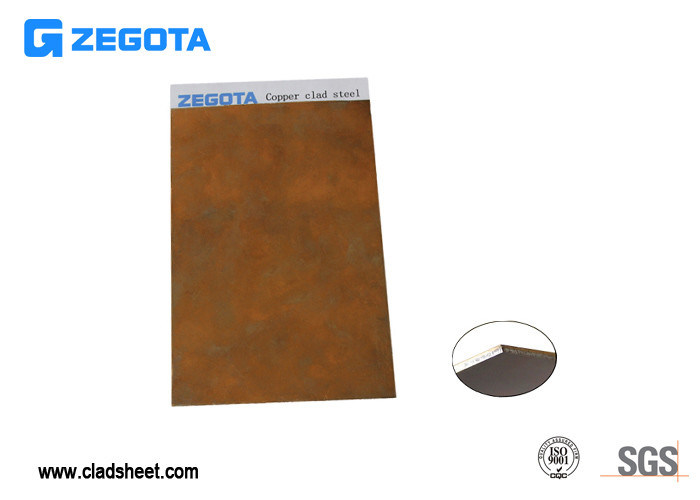

Multipurpose Copper Clad Steel Sheet High Durability For Electronic Connector
Our products are broadly used in many fields, such as Aeronautics & Aviation, Ocean Engineering, Ship Manufacturing, Heat Exchanger, Machinery Equipment, Chemistry Industry, Metallurgical Equipment, Petroleum Refining Processes, Medical Equipment, Nuclear Engineering, etc. Our strength is reliability in good quality, quick delivery, best service, and competitive prices.Welcome to contact with us.
1. In chemical equipment manufacuring, corrosion protection and high teperature ressistance clad plate has been widely used in vessel, towers, heat exchanger, pipes etc. To enhance the equipemnt life time.
2. To resist the mediem corrosion and reduce the cost, stainless steel, nickel-base alloy clad plate and titanium clad plate are used to solve these problems.
Parameters:
| Clad material |
Copper |
Copper |
Copper |
| Steel |
Steel |
Steel |
| Copper |
Copper |
Copper |
| Thickness(mm) |
0.01-4.0 |
0.04-4.0 |
0.01-4.0 |
| Width(mm) |
5.0-1500 |
5.0-1500 |
5.0-1500 |
| Tensile strength(MPa) |
260-320 |
480-580 |
480-580 |
| Yield strength(MPa) |
200-260 |
300-380 |
300-380 |
| Elongation(%) |
≥37 |
≥15 |
≥15 |
Advantages:
1. Ultrathin: By using the unique clad technology, the single-layer clad with 0.01mm thickness can be compounded with 0.03mm base metal, the total thickness can be up to 0.05mm, and the multi-layer clad can be made.
2. High performance cost ratio: It is low manufacturing cost by clad in physical process and unique cold rolling technology without extra welding and explosion.
3. High strength: Using unique composite technology and taking advantage of the high strength of steel, while copper is soft, the combination of the two can make full use of its advantages, which clad a special material.
