High Reliability Solid Flow Meter Products

Product Details

Model NO.:

Speed Adjustment:

Variable Speed

Type:

Solid Flow Meter

Usage:

Building Materials, Chemical Industry, Colliery, Gravel Field, Metallurgy, Mine

Noise Grade:

Less Than 70(dB)

Material:

Stainless Steel 304

Material Temperature Range:

0~50ºC

Transport Package:

Wooden Box

Specification:

Depend On Model

Trademark:

Zegota

Origin:

China

HS Code:

8477900000

Production Capacity:

500 Sets/Month

Payment & Shipping Terms

Minimum Order Quantity

Product Description

Solid Flow Meter Products

·Product Description
The new series of weightlessness scales launched by Zhejiang Zegota Precision Technology Co., Ltd. utilizes leading dynamic control technology and is equipped with a dynamic weighing controller developed by a professional R&D team specifically for weightlessness scales. The controller controls the feeding flow rate by adjusting the operating speed of various actuators such as screws, vibrating feeders, and pumps in real time. It is also known as a constant flow feeder and is widely used in continuous feeding production lines in industries such as rubber and plastic environmental protection, chemical, food, and non-ferrous steel. This product not only improves the accuracy, stability, and reliability of feeding, but also significantly enhances the operational efficiency of the factory, reduces the labor intensity of workers, creates more economic benefits for the enterprise, overturns the traditional manual batching mode, and has profound milestone significance in the history of batching development.
Solid flow meter is a device used to measure the flow rate of solid materials in pipelines, widely used for online monitoring of solid substances such as powder, dust, small spheres, and granules during pneumatic conveying or free fall processes. The core principle is based on the Doppler effect, which generates a microwave field inside the pipeline through sensors. The microwave is reflected by the flowing solid particles, and the solid flow rate is accurately measured by calculating the changes in frequency and amplitude

·Product advantage

1.Wide applicability: not limited by materials | suitable for various working conditions and scenarios.

2.Small measurement deviation: The whole machine has almost no moving parts. The self-developed measurement dedicated control system is real-time online scale calibration and self-cleaning. Key parts are fully cooled and temperature controlled.

3.Simplification: easy disassembly and assembly | simple operation | simple maintenance.

4.Flexible installation: small space requirements | multiple installation locations.

Applicable materials: powders, granules, or sheet-like materials with good fluidity

Principle: The weighing signal of freely flowing materials is detected by two weighing modules without moving parts, and the actual flow rate of the materials is calculated after processing by a self-developed control system, thereby achieving cumulative measurement and process control in production.

·Main Components
1.Hopper
Made of stainless steel, designed to prevent corrosion and adhesion, ensuring smooth material flow.
2.Single-Screw Feeder
Adjustable speed ensures uniform and stable material flow.
3.High-Precision Weighing Sensor
Monitors the total weight change of the equipment in real-time for accurate loss-in-weight calculations.
4.Control System
Includes a touch screen or other human-machine interface (HMI) for parameter settings, alarm functions, and data export.
5.Drive System
The motor drives the screw rotation with variable frequency control capabilities.

·Product Details

Technical Data Sheet

Type	TGTC275	TGTC350
Size(MM)	914×746×1513	1314×992×2201
Capacity(T/H)	2-36	5-120
Capacity(M³/H)	3.3-60	8.3-200
power supply(V)	DC24	DC24
Material temperature range(ºC)	0~50	0~50
High temperature range(ºC)	0-100	0-100
noise grade(dB)	<70	<70
Material	The contact parts of the material are 304 stainless steel.

Note: The feeding amount is measured from materials with good flowability. The feeding amount may vary according to the actual material's specific gravity, flowability, and other characteristics. Please consult Zegota Technology for specific technical parameters.

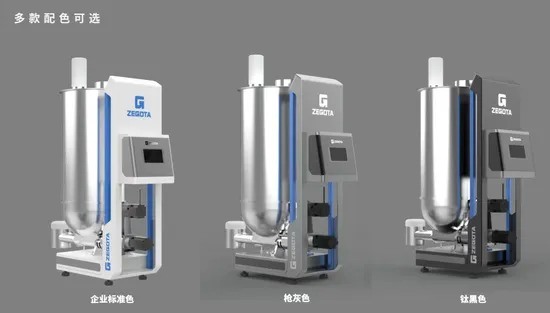

High Reliability Solid Flow Meter Products 1

·FAQ
1.How long does the estimated delivery time for the product take?
Answer: It depends on the product and order quantity. Normally, a minimum order quantity order takes 15 days.
2.How to handle the installation and debugging of the product after purchasing it?
Answer:Our product comes with an instruction manual and supports video installation and debugging. The user interface supports both Chinese and English.
3.How long does the product warranty last?
Answer:We support a one-year warranty.
4.How is the after-sales service for the product?
Answer:If any problems occur during the warranty period, please contact Zegota staff.
5. Can I purchase product spare parts from your company?
Answer:Sure.Spare parts can be purchased individually.

·Brief Introduction
Zhejiang Zegota Precision Technology Co., Ltd is a team that develops and manufactures weight loss scales, providing comprehensive automation solutions to industries such as rubber, food and medicine, and chemical engineering based on leading scale and core technology. ZEGOTA highly focuses on the industry's demand for smart factories, helping customers achieve high integration, high precision, and excellent efficiency in smart factories. We provide customers with equipment automation, production equipment information collection and optimization, visual management, and factory energy consumption monitoring, while also offering customized processes.

High Reliability Solid Flow Meter Products 4
